Products

X-Ray Film and Paper Digitizer S6000 Series

• 600 dots per inch resolution (up to 8K by 10K)
• Film and paper
• USB 2.0
• 8-bit/16-bit processing (65536 shades of gray)
• Gamma, brightness, contrast, and exposure controls
• Film and paper size of up to 14 x 35 inch
• Optical Density of better than 4.0
• Light and compact, only 19.8 lbs.
• Wall mountable
• Feed tray and catch basket
• Easy to install
• Hardware and software are fully Customizable
• Windows Xp and Vista
• Optional Multiple Film Feeder

Download or view hardware datasheet

Multiple Film Feeder

• Digitize multiple X-Ray films with one click
• 10 to 15 mixed-size films
• 50-60 films per hour

Software Development Kit (SDK)

• For easy integration of IDD digitizers into medical viewer, QC or PACS software
• No ActiveX or OCX drivers to install
• Easy to use and support
• Customizable with your company name and logo

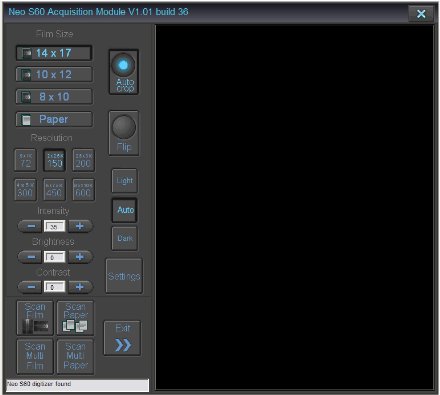

Image Acquisition Module

• A stand-alone acquisition module capable of digitizing film or paper
• Automatic Multiple Film Feeder control already built in
• Images are scanned and saved to files, one image per sheet
• Smart multiple paper scanning
• Automatic intensity, gamma, brightness and contrast control
• Automatic high optical density
• Autocrop film and paper
• 8 and 16 bits processing

Twain Module

• Twain acquisition module
• 8 and 16 bits image processing
• Single or multiple page support
• Autocrop
• Film and paper support
• Automatic image adjustments
